Step by step

Simple installation in 4 steps.

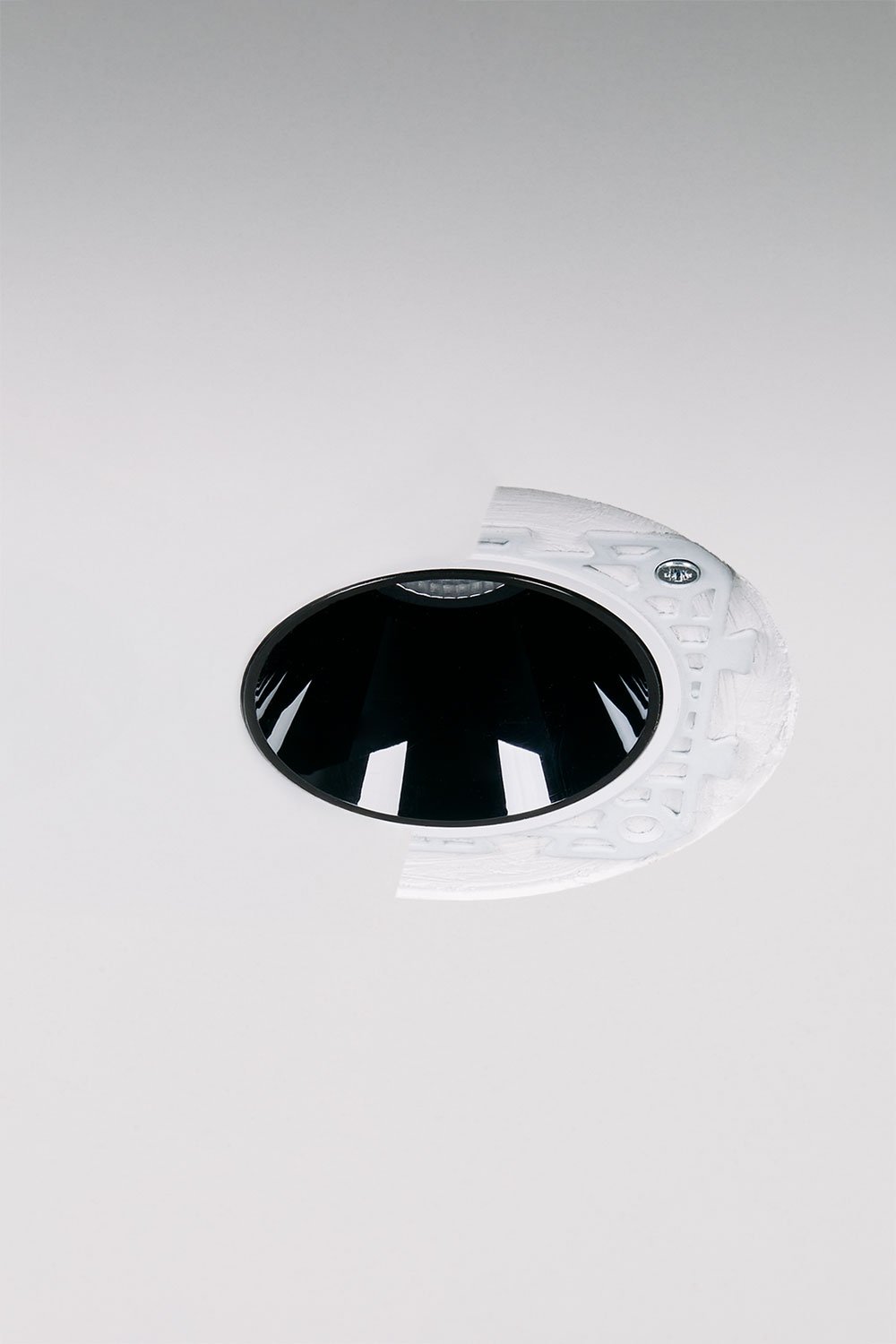

The spotlight is recessed into the ceiling. The trim covers the cut-out for a clean finish.

  1. 01

    CUT THE CEILING OPENING

    Use a hole saw with the diameter specified for your model.

  2. 02

    POSITION THE TRIM

    Open the clips and insert it into the ceiling.

  3. 03

    CONNECT TO POWER

    Complete the electrical connection before fitting the spotlight.

  4. 04

    INSERT THE SPOTLIGHT

    Press until it is securely in place.

  • 8W Power More light per spotlight. Ideal for living rooms, kitchens or slightly higher ceilings.

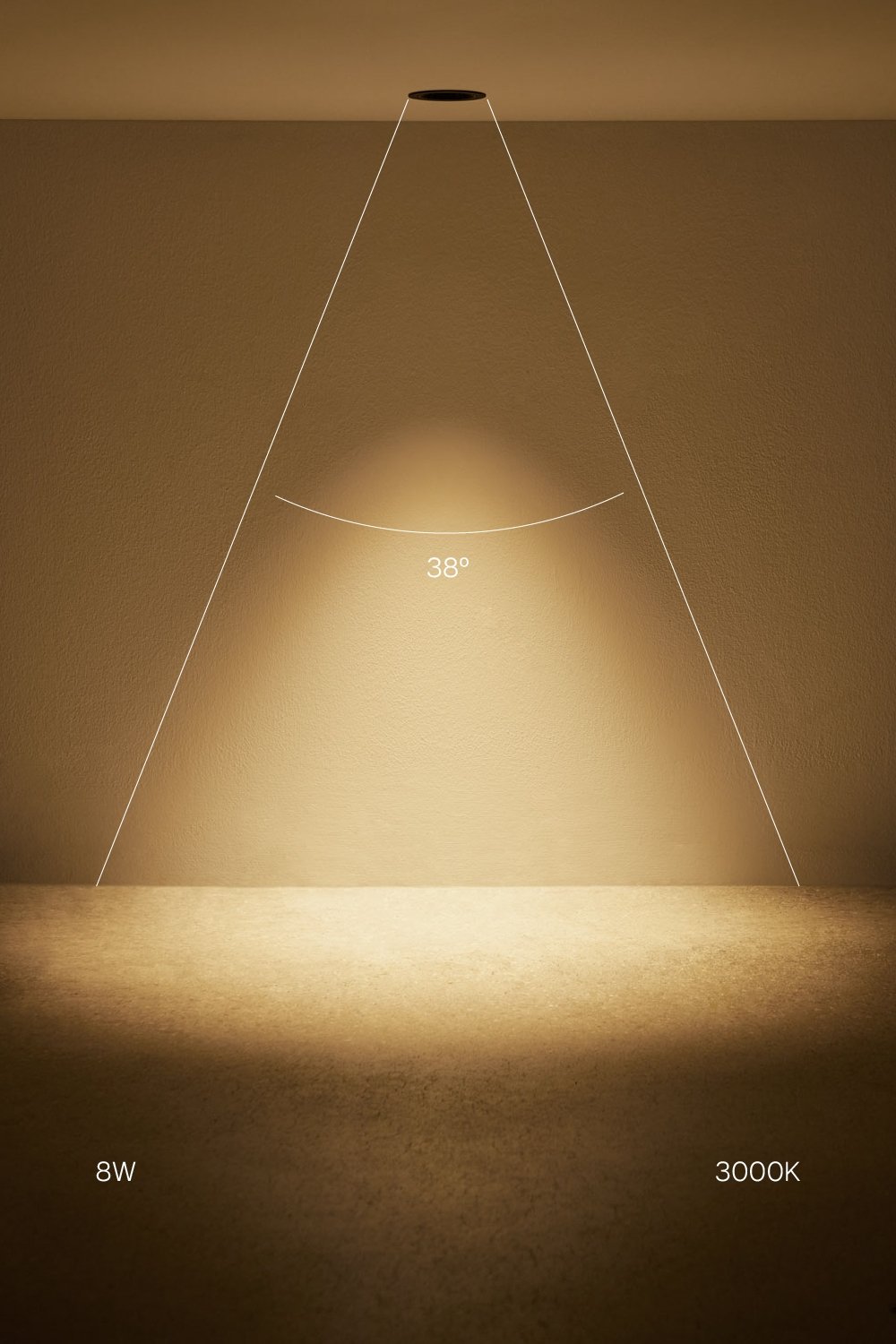

  • 38° Beam Angle Wide beam that spreads the light evenly. Ideal as general ambient lighting.
  • 50,000 Hours Life Span More than 17 years used 8 hours a day. Estimated operating hours before the LED loses quality.
  • IP20 IP Protection Suitable for dry indoor spaces: living room, bedroom or hallway. Protected against dust, but not water.
  • ≥97 CRI How faithfully colours appear under this light compared with sunlight (100). Above 90 is considered excellent; ≥97 is professional grade.
  • Lifud Driver Electronic component that regulates the current to the LED. Lifud is a leading brand: it ensures stability, flicker-free light and a longer lifespan.
  • 767 lm Lumens The actual light the spotlight gives off, measured in lumens (lm). The more lumens, the brighter the light.
  • 3000 K Light Temperature Warm but cleaner light. A balance of comfort and clarity for the whole home.
Ampliación, medidas foto horizontal

Description

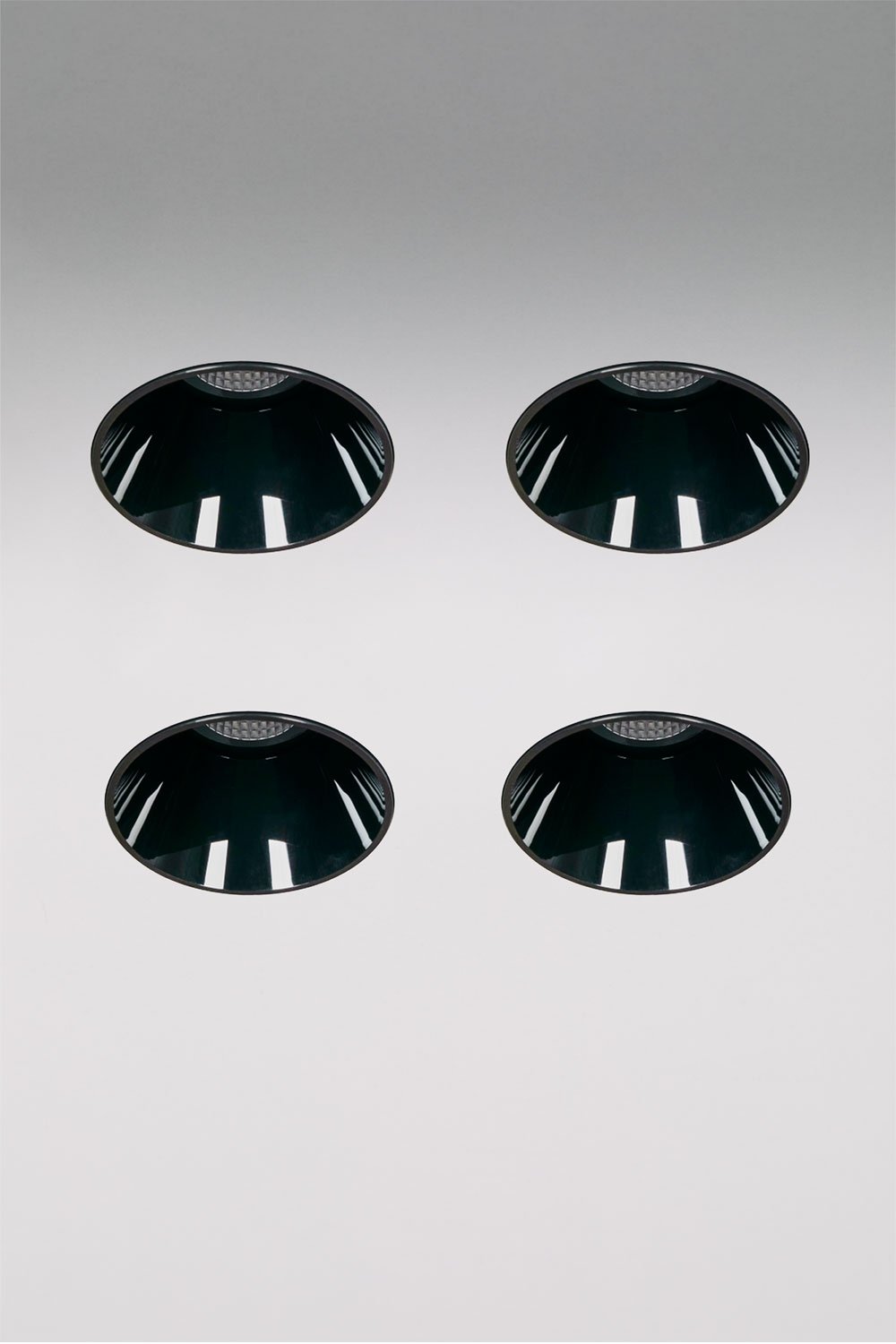

Pack of 4 trimless LED downlights Ø6.8 cm in aluminum with progressive on and off Luisiana

The Pack of 4 LED trimless downlights Ø6.8 cm in aluminum with progressive on and off Luisiana combines a frameless design with functional and comfortable lighting, ideal for discreetly integrating into the ceiling and creating pleasant atmospheres in different rooms. Its progressive on and off technology allows the brightness to gradually appear and fade, avoiding abrupt transitions and providing a sense of visual balance that transforms the perception of each environment.

These frameless recessed LED downlights are designed with aluminum components and a polycarbonate reflector that directs the light projection downward. Their trimless configuration eliminates the visible outer frame, promoting a clean integration into the ceiling surface, while the light source housed inside the unit helps to minimize direct glare.

In the living room, the integrated ceiling LED lighting allows for distributing different light points to define the resting area, illuminate a reading corner, or highlight certain furniture elements. In the dining room, they can be arranged around the table to provide pleasant lighting during meals, after-meal conversations, and family gatherings. In hallways and entrance halls, their aligned placement illuminates passage areas and provides visual continuity between different parts of the home. They are also an interesting option for bedrooms, where their progressive on and off feature promotes a pleasant light transition at the start and end of the day.

The gradual lighting of the LED downlights is also especially appealing in bedrooms, where the transitions accompany moments of rest, as well as in art galleries, shop windows, and commercial establishments, where the invisible integration of the fixtures gives full prominence to the displayed items.

Complete your project by combining these trimless LED spotlights with other luminaires from the Luisiana collection to design a coherent architectural lighting scheme. To prepare for installation, you can add the Trimless recessed downlight hole saw in steel Glendive, available on our website.

In some cases, the imagery, measurements and colours, as well as their names, are merely for reference. Everything perceived on the screen can be altered by many factors, which are: the screen calibration, the ambience lights, the viewing angle, etc. If the customer wants to know these details he should consult our technical service, as returns for technical reasons will be at his expense.

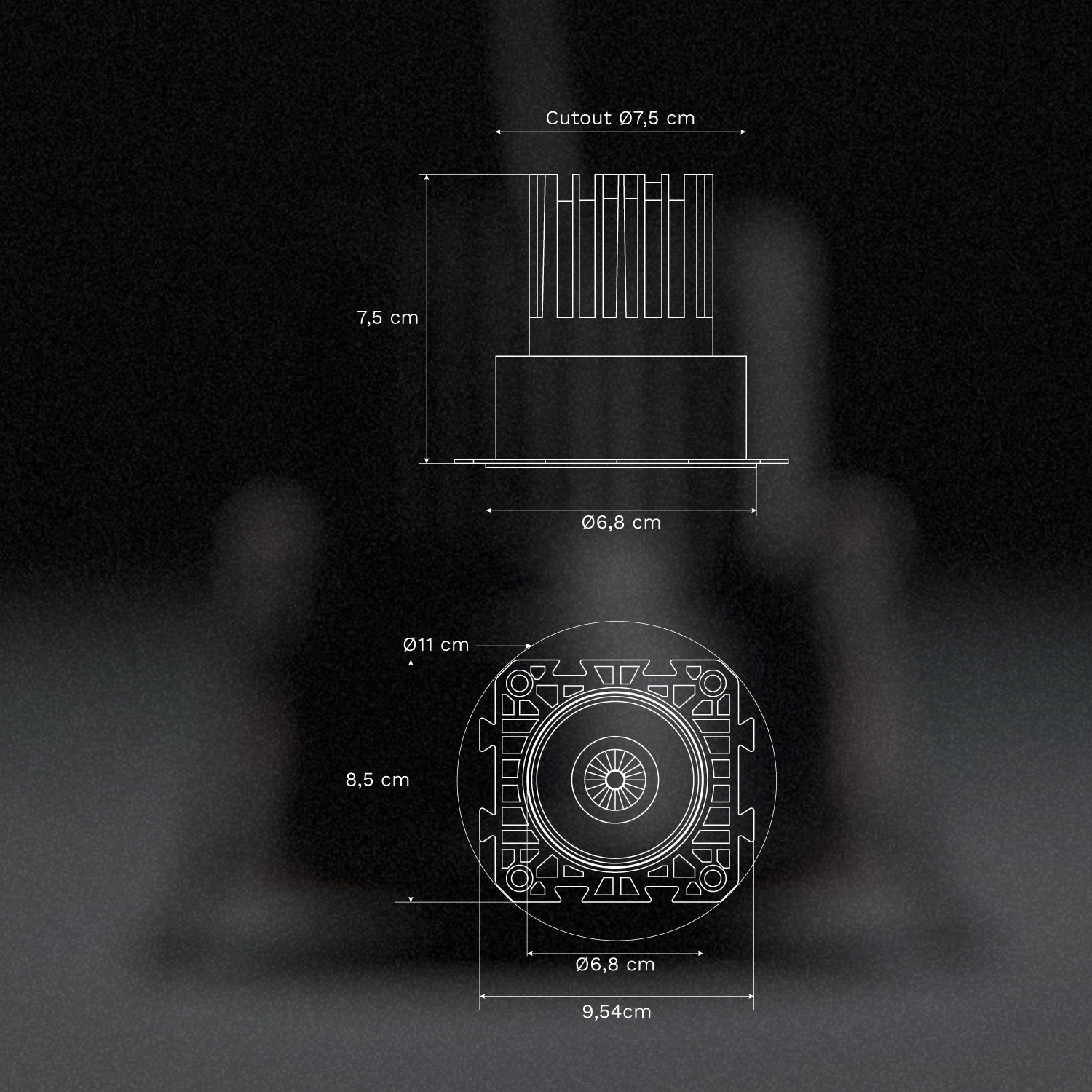

Measures

  • 4 x 0,27 kg
  • 7,5 cm
  • Ø6,8 cm

Material

  • Polycarbonate
  • Aluminium

Features

  • Black
  • Luisiana
  • Yes
  • 8W
  • AC 220-240V
  • 38°
  • 50,000 Hours
  • IP20
  • Ø7,5 cm
  • Indoor
  • ≥97
  • 50-60 Hz
  • Yes
  • Lifud
  • E
  • 767 lm
  • No
  • Yes
  • 3000 K
  • No
  • No
  • MacAdam Step ≤3
  • 220mA
  • 121.8 lm/W
  • ⧈
  • -19,1

Warranties

  • CE & RoHS

Files to download

  • Download PDF: LUISIANA_NEW
  • 3D Documentation: 3D Files
